Minidryer and Stenter

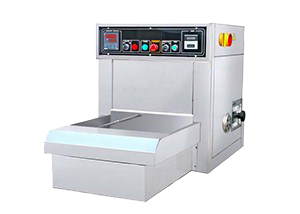

KFG-2505 Minidryer and Stenter

For Laboratory Drying, Fixing, and Curing of Small Samples.

  • All stainless-steel construction with electrical heating
  • Connection to 220V or 380V x 3PH x 50 or 60HZ (specify) X 6KW
  • Sample size : 350 x 400 mm
  • Automatic pin frame transport with preselectable dwell times from 10 seconds to 6 minutes
  • Electric heating 6KW
  • Temperature range from 30-250 degrees C by Hot-Air Circulation
  • Digital display type temperature controller
  • 3 sets of pin frames adjustable in length and width for sample sizes
  • Audible alarm for end of test
  • Air duct with adjustment for top and bottom air circulation
  • Weight: 250 kg (550 lbs)
  • Dimensions: 650mm (26”) W, 1064mm (42”) D, 950mm (38”) H


For Laboratory Steaming, Drying, and Curing of Small Samples.

  • Has all the features of the Electric Minidryer. In addition it can be operated in steamer mode for dye and print fixation and setting/ This subjects samples to super heated steam under pressure of 1kg/sq. cm at 102ºC and high temperature steaming to 220ºC.
  • Super heated steam is circulated in the air-tight steaming chamber for even steam distribution
  • Automatic temperature controller
  • Pressure regulating valves and pressure indicator at steam inlet for fine control.
  • Weight: 380 kg (840 lbs)
  • Dimensions: 650mm (26”) W, 1620mm (64”) D, 950mm (38”) H
